Product Description

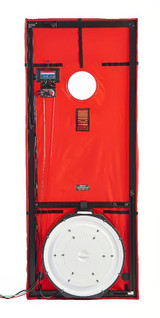

The Minneapolis Blower Door Model 3 Single Fan System with DG-1000 is a professional building airtightness testing kit for energy auditors, HERS raters, weatherization crews, HVAC performance contractors, and building enclosure specialists. Instead of being a single replacement part, this kit provides the core equipment needed to pressurize or depressurize a building and measure envelope leakage with a Model 3 fan and DG-1000 digital pressure and flow gauge.
This BD3-KIT-010 configuration includes a Model 3 110V fan, variable speed controller, Flow Rings A and B, fan cap, DG-1000 gauge, mounting board, fan control cable, commercial aluminum frame with two crossbars and carrying case, one-hole commercial nylon panel, accessory case, tubing, manuals, and TEC software. The commercial frame configuration supports larger openings than a standard residential frame, making this kit especially useful for pros who need a complete single-fan blower door setup with expanded frame capability.
The DG-1000 adds touchscreen control, Wi-Fi, Bluetooth, USB, and Ethernet connectivity, rechargeable lithium batteries, fan speed control from the gauge, and compatibility with TEC equipment and software. The Model 3 fan provides airflow measurement from 300 to 6,300 CFM with included flow rings, and lower flow ranges are possible with additional rings sold separately.
Product Specifications:
- Manufacturer Code: BD3-KIT-010
- Brand: The Energy Conservatory / TEC
- Product Type: Blower Door System Kit
- Product Line: Minneapolis Blower Door™
- System Type: Model 3 single fan system
- Gauge Included: DG-1000 digital pressure and flow gauge
- Fan Included: One Model 3 110V fan
- Fan Control: Variable speed controller and fan control cable
- Included Flow Accessories: Flow Rings A and B, fan cap
- Frame Type: Commercial aluminum frame
- Frame Capacity: Max height 96", max width 48"
- Panel Included: One-hole commercial nylon panel
- Cases Included: Aluminum frame carrying case and accessory case
- Software Included: TECTITE Express and TECLOG4 software
- Airflow Range: 300 to 6,300 CFM with included flow rings
- Lower Flow Range: Down to 11 CFM with additional flow rings sold separately
- DG-1000 Pressure Channels: Two independent pressure channels
- DG-1000 Accuracy: 0.9% of pressure reading or 0.12 Pa, whichever is greater
- DG-1000 Connectivity: Wi-Fi, Bluetooth, USB, Ethernet
- DG-1000 Power: Rechargeable lithium batteries
- DG-1000 Battery Life: Over 15 hours of continuous use with default settings
- Fan Warranty: 5-year TEC repair warranty
- Product Weight: 33 lbs
- Shipping Weight: 37.95 lbs
- Fan Case: Sold separately
