Description
Product Description

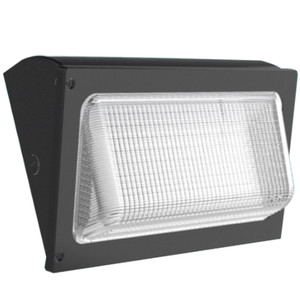

The Simply Conserve Adjustable Full Cut-Off LED Wall Pack delivers flexible, energy-efficient exterior lighting for commercial and industrial applications. Designed as a field-adjustable 9-in-1 fixture, it allows installers to select between 45W, 60W, or 80W power settings and 3000K, 4000K, or 5000K color temperatures using onboard controls. This flexibility makes it easier to use one fixture across multiple exterior lighting projects, from building facades and walkways to loading areas, parking zones, and security lighting.
Built for outdoor performance, this full cut-off wall pack features a durable bronze-finished die-cast aluminum housing, UV-resistant lens and coating, and an IP65 wet-location rating. It delivers up to 11,200 lumens with 140 LPW efficiency, while integrated 0–10V dimming, built-in on/off photocell control, and 4KV surge protection help improve energy savings, automation, and long-term reliability. With a 50,000-hour rated life and 5-year limited warranty, it is a strong choice for commercial lighting upgrades and bulk-volume projects.
Key Features
-
Adjustable Color Temperature
Easily select from 3000K, 4000K, or 5000K and 45W, 60W, or 80W via onboard switch, giving you a versatile 9-in-1 solution for diverse lighting environments. -
Rugged, Outdoor-Ready Build
Features a durable bronze-finished die-cast aluminum housing, UV-resistant lens and coating, and IP65 rating for reliable use in wet locations. -
High Performance & Longevity
Delivers 11,200 lumens at 140 LPW efficiency, with a minimum CRI of 80 and an L70-rated lifetime of at least 50,000 hours. -
Built-in Surge Protection
Integrated 4KV surge protection safeguards the fixture against voltage spikes, enhancing durability and reliability. -
Dimmable for Efficiency
Compatible with 0–10V dimming systems for enhanced energy savings and light-level control. -
Fully Integrated Photocell
Brings on/off control to the product based on available daylight. No need to rely on manual switches.
Product Specifications:
- Manufacturer Code: L80-FCWP-30/50-120/277-D-ADJ
- Spec Sheet Model: L45/80-FCWP-30/50-120/277-D-ADJ (PC)
- Brand: Simply Conserve
- Product Type: Adjustable Full Cut-Off LED Wall Pack
- Fixture Type: Full Cut-Off Wall Pack
- Wattage: Field selectable 45W / 60W / 80W
- Color Temperature: Field selectable 3000K / 4000K / 5000K
- Fixture Solution: 9-in-1 adjustable wattage and CCT
- Lumens: Up to 11,200
- CRI: ≥80
- Efficacy: 140 LPW
- Voltage: 120–277V
- Dimming: 0–10V dimmable
- Photocell: Integrated on/off photocell
- Surge Protection: Built-in 4KV surge protection
- Housing: Bronze-finished die-cast aluminum
- Lens / Coating: UV-resistant lens and coating
- Location Rating: Wet-location rated
- Ingress Protection: IP65
- Rated Life: 50,000 hours, L70 rated
- Product Dimensions: 12.6" L x 5.1" W x 6.9" H
- Case Dimensions: 18.9" L x 15.1" W x 15.3" H
- Warranty: 5-year limited warranty
- Certifications / Compliance: DLC Listed, ENERGY STAR, cULus Listed, RoHS, FCC
