Product Description

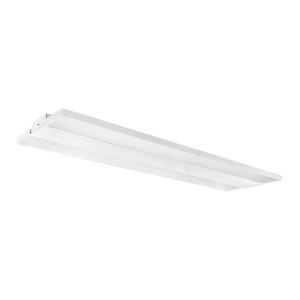

The AlphaLite HBDM-(500/440/300)/8A LED Linear High Bay is a high-output commercial and industrial fixture designed for large spaces with high mounting heights. Its field-selectable wattage can be set to 300W, 440W, or 500W, while the selectable 4000K / 5000K color temperature lets installers adapt the same fixture to different lighting environments.
At full output, the fixture delivers up to 70,000 lumens, making it suitable for warehouses, factories, workshops, retail areas, grocery stores, gymnasiums, and exhibition halls. A standard 90° x 90° dual-lens optical system provides controlled distribution while helping reduce high-angle glare.
The fixture comes standard with 0–10V dimming, Aux 12V capability, and a sensor receptacle for optional PIR and wireless controls. V-hook and chain suspension hardware is included, while surface, aircraft-cable, and pendant mounting options are available separately. Its compact die-cast aluminum housing and 7-year limited warranty make it a strong option for demanding high-bay applications.
Product Features
- High-output design is well suited for large commercial and industrial spaces with tall ceilings
- Selectable wattage allows one fixture to cover multiple illumination requirements
- Selectable color temperature helps contractors match cooler or more neutral lighting environments
- Dual-lens optical design provides controlled distribution while helping limit high-angle glare
- Sensor-ready configuration makes it easier to add occupancy, daylight, or wireless controls in the field
- Standard 0–10V dimming supports energy-saving lighting-control strategies
- Included suspension hardware helps simplify standard high-bay installation
- Multiple optional mounting methods provide flexibility for different ceiling and structural conditions
- Compact die-cast construction helps reduce fixture bulk while protecting internal components
- Long rated life and 7-year warranty help reduce maintenance in difficult-to-access installations
Product Features
- Brand: AlphaLite
- Model / MPN: HBDM-(500/440/300)/8A
- Product Series: HBDM
- Product Type: Die-Cast LED Linear High Bay
- Wattage: Selectable 300W / 440W / 500W
- Delivered Lumens: 300W: 42,000 lm; 440W: 61,600 lm; 500W: 70,000 lm
- Efficacy: 140 lm/W
- Color Temperature: Selectable 4000K / 5000K
- CRI: >80
- Input Voltage: 120–277V
- Input Frequency: 50/60 Hz
- Power Factor: >0.90
- THD: <20%
- Dimming: Full-range 0–10V
- Dimming Range: 10–100%
- Beam Angle: 90° x 90°
- Optics: Dual Polycarbonate Lens
- Housing: Die-Cast Aluminum
- Finish: Baked White Paint
- Surge Protection: 6kV
- Impact Rating: IK06
- Operating Temperature: -40°F to 122°F (-40°C to 50°C)
- Rated Life: 70,000 Hours
- Sensor Ready: Yes
- Auxiliary Power: Aux 12V Ready
- Optional Controls: PIR Sensor, Bluetooth PIR Sensor, Lutron Athena
- Wireless Node Options
- Standard Mounting: V-Hook and Chain Suspension
- Optional Mounting: Surface Mount, Aircraft Cable Suspension, Pendant Mount
- Location Rating: Dry and Damp Locations
- Certification: cULus Listed
- Warranty: 7-Year Limited Warranty
- Dimensions: 46" L x 12.6" W x 2" H
- Default Factory Setting: Highest Wattage and Highest CCT
